Linde Introduces Ergonomic Lithium-Ion Electric Forklifts

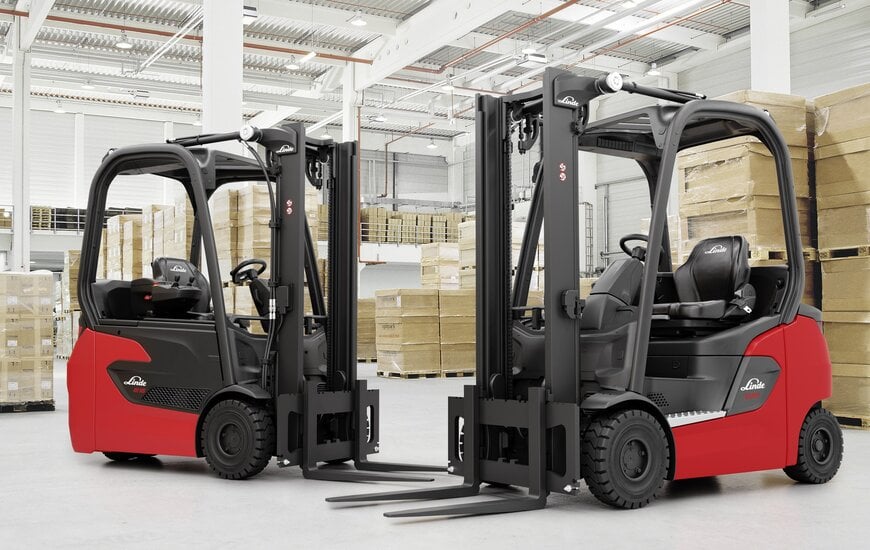

Electric counterbalance forklifts used in warehouses and distribution centers are increasingly shaped by battery integration and operator-centric design. In this context, Linde Material Handling has introduced the Linde Ei14 to Ei20 series, combining integrated lithium-ion batteries with updated ergonomics for light to medium-duty intralogistics applications.

Battery integration reshapes forklift design
The Linde Ei models are derived from the Linde E14 – E20 electric forklifts but replace the conventional removable battery system with an integrated lithium-ion battery. This change removes the need for a separate battery compartment, directly affecting vehicle layout and operator space.

Unlike lead-acid batteries, lithium-ion systems support intermediate charging during breaks, reducing downtime in single- or two-shift operations. They are maintenance-free and do not emit gases during charging, eliminating the requirement for dedicated ventilated charging rooms. This allows warehouse operators to repurpose floor space while simplifying battery management processes within a digital supply chain.

An optional onboard charger enables charging via standard electrical outlets, extending operational flexibility in facilities without centralized charging infrastructure.

Operator space and access redesigned
The integration of the battery system increases available cabin space, with driver legroom expanded by 35 percent compared to conventional designs. This adjustment allows a more neutral seating posture during extended operating periods.

Vehicle access has also been modified. The entry step height is set at 40 centimeters, combined with a wider step geometry to support frequent entry and exit cycles. This is relevant in applications where operators regularly leave the vehicle for picking or handling tasks.

Performance aligned with compact warehouse operations
The forklifts are available in three- and four-wheel configurations with load capacities from 1.4 to 2.0 tons. A 48-volt drive system with maintenance-free asynchronous motors provides the required traction and lifting performance for typical warehouse handling tasks.

Maneuverability is addressed through swivel steering in three-wheel models and the Linde combi steering axle in four-wheel variants. Combined with compact vehicle dimensions, these systems support operation in confined warehouse aisles and loading zones.

The trucks are specified for operation in environments down to minus 20 degrees Celsius, extending their use to cold storage and temperature-controlled logistics.

Embedded safety systems for load and motion control
The forklifts incorporate multiple assistance systems designed to stabilize vehicle behavior and reduce operator error. The Linde Curve Assist adjusts travel speed based on steering angle, while the Linde Load Assist uses pressure sensors and lift height data to regulate tilting, lifting, and travel functions, reducing the risk of tip-over events.

Additional optional systems include Linde Speed Assist for automatic speed adaptation in defined zones, Linde Safety Pilot for load monitoring, and Linde Safety Guard for proximity-based warning zones.

Connectivity and fleet-level data integration
The Ei14 to Ei20 series is part of the Linde 12XX generation, built on an updated electrical and electronic architecture with integrated sensor systems. This enables connectivity features relevant to fleet management and the broader automotive data ecosystem.

With an optional data transmission unit, operating hours and diagnostic codes can be transmitted wirelessly to fleet management or service platforms. Software updates and feature activations can be deployed over the air, reducing the need for manual intervention and supporting lifecycle management of the equipment.
